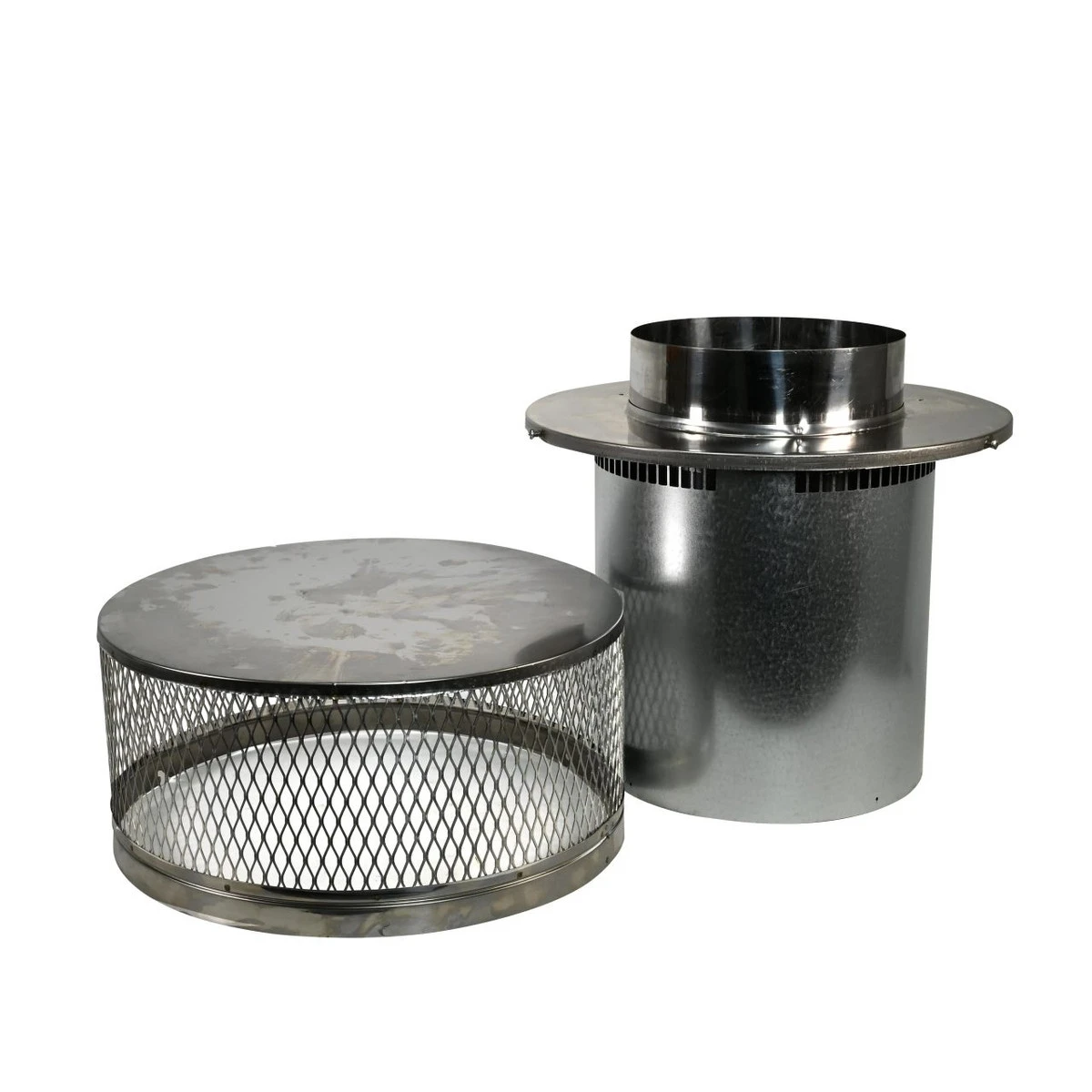

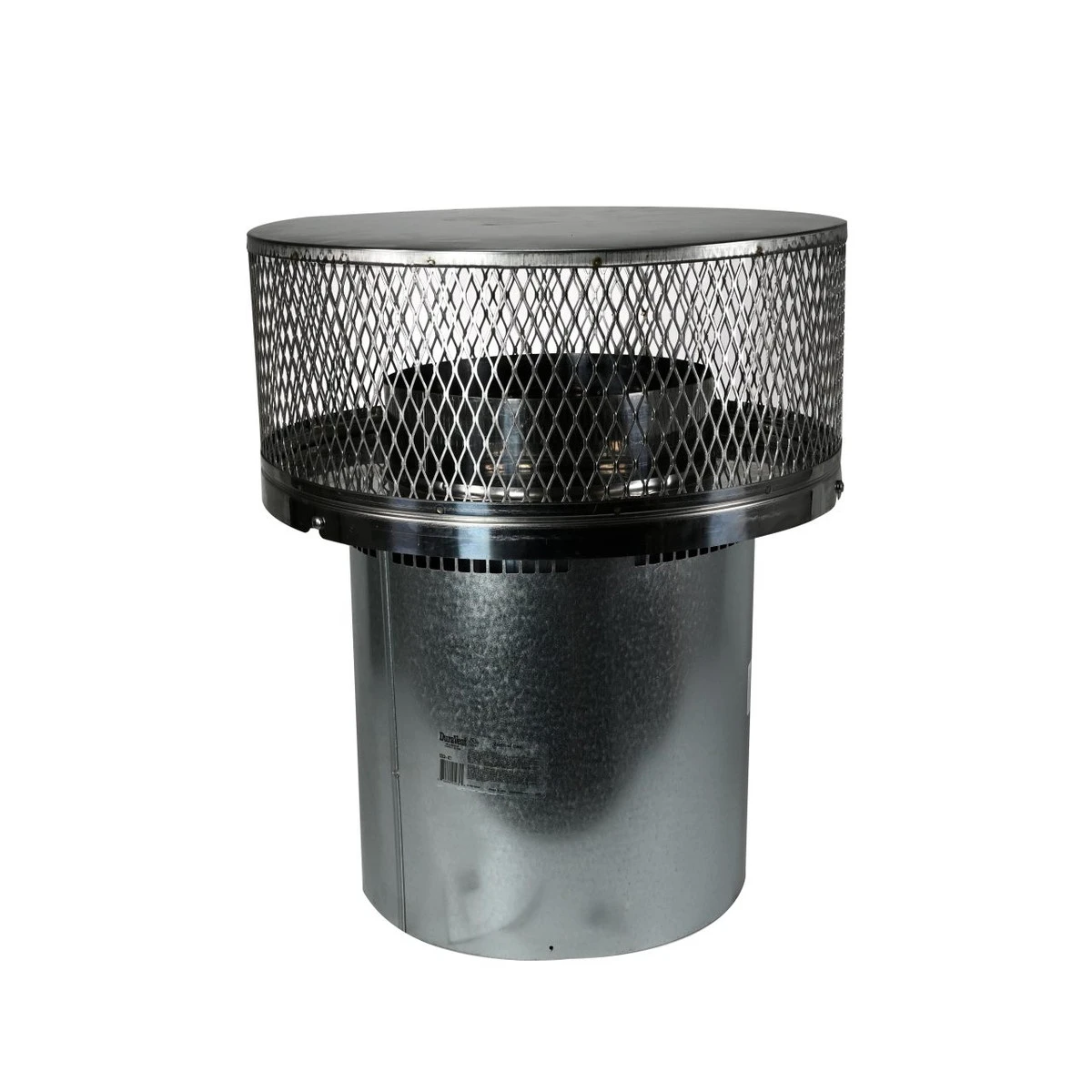

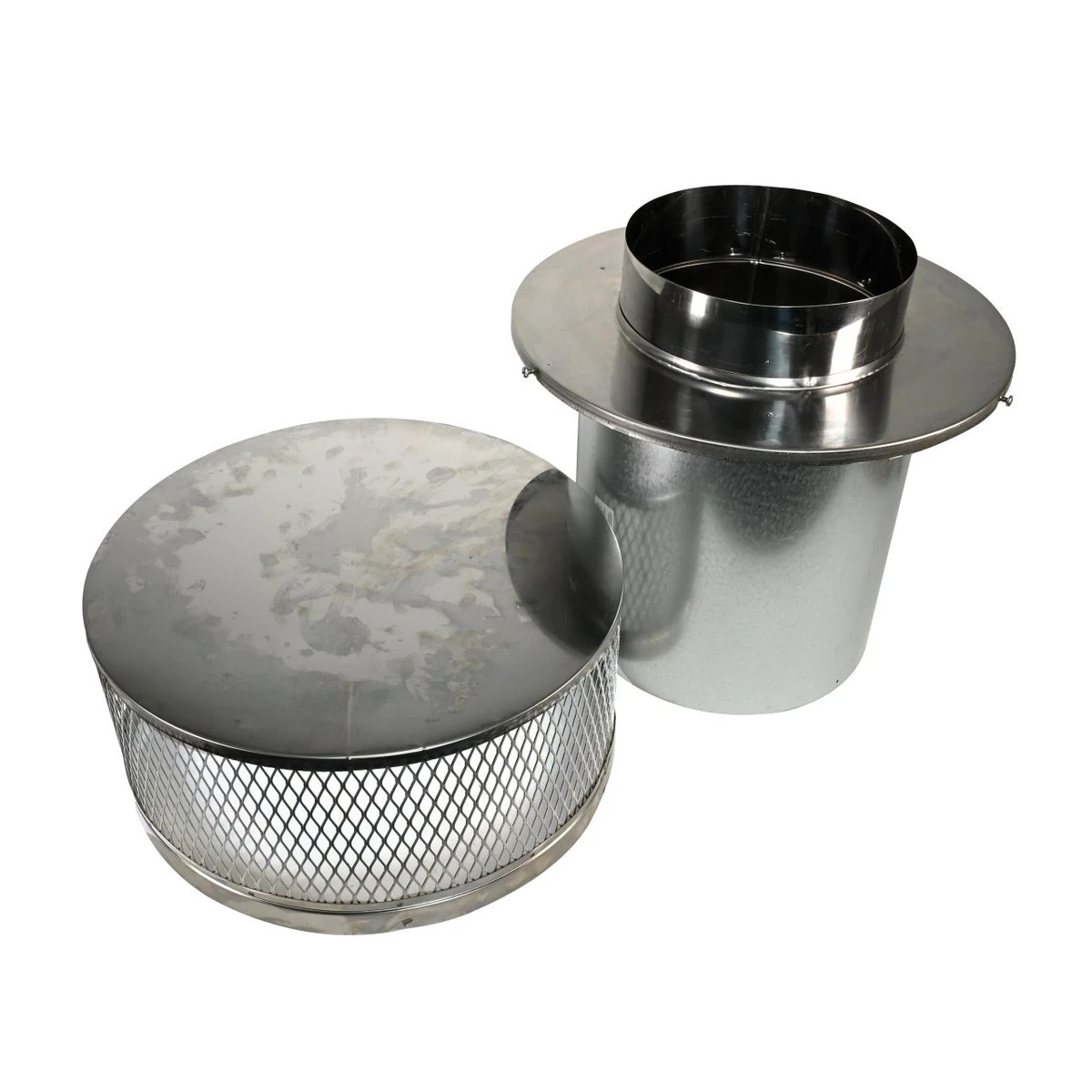

12″ DuraChimney II Chimney Cap – 12DCA-VC1

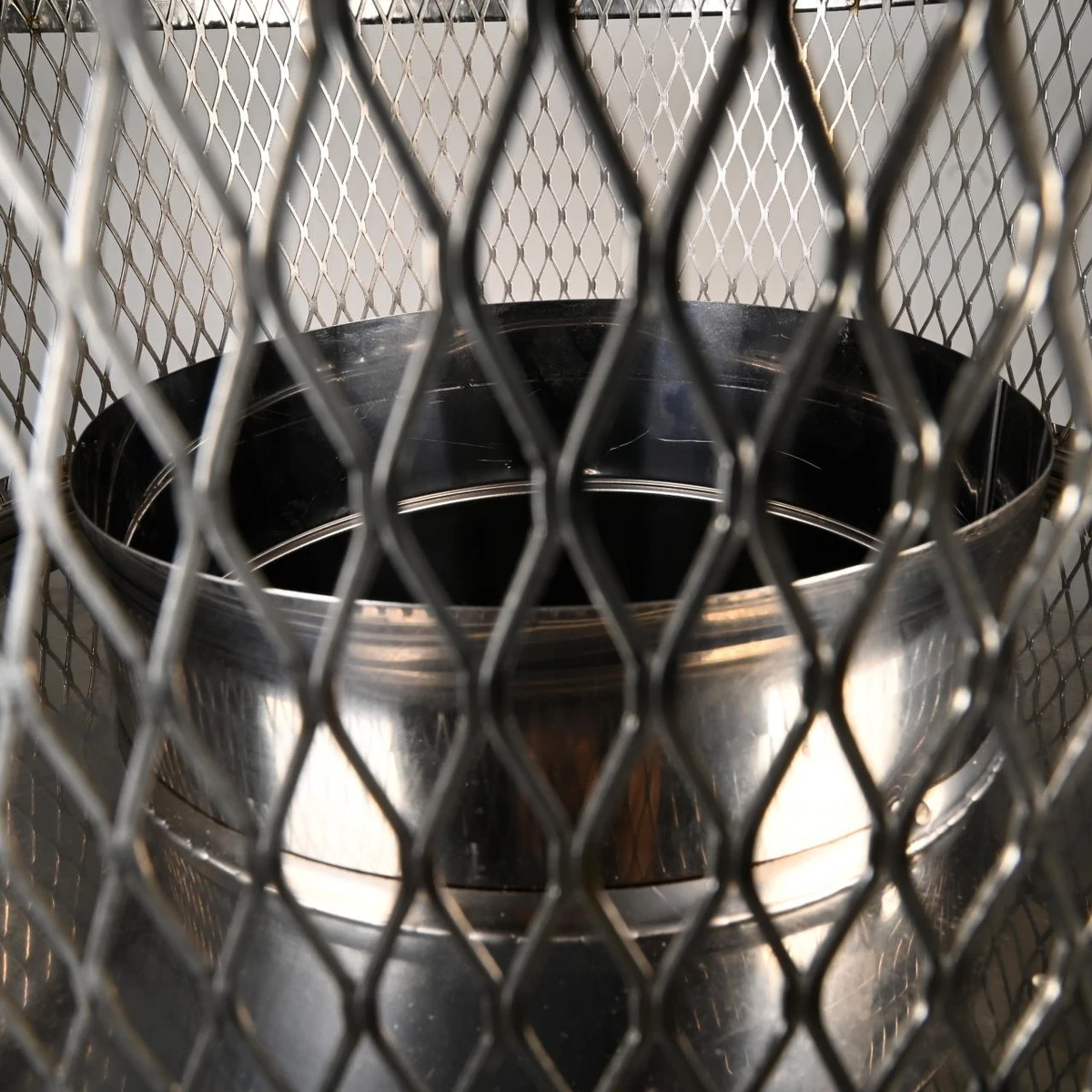

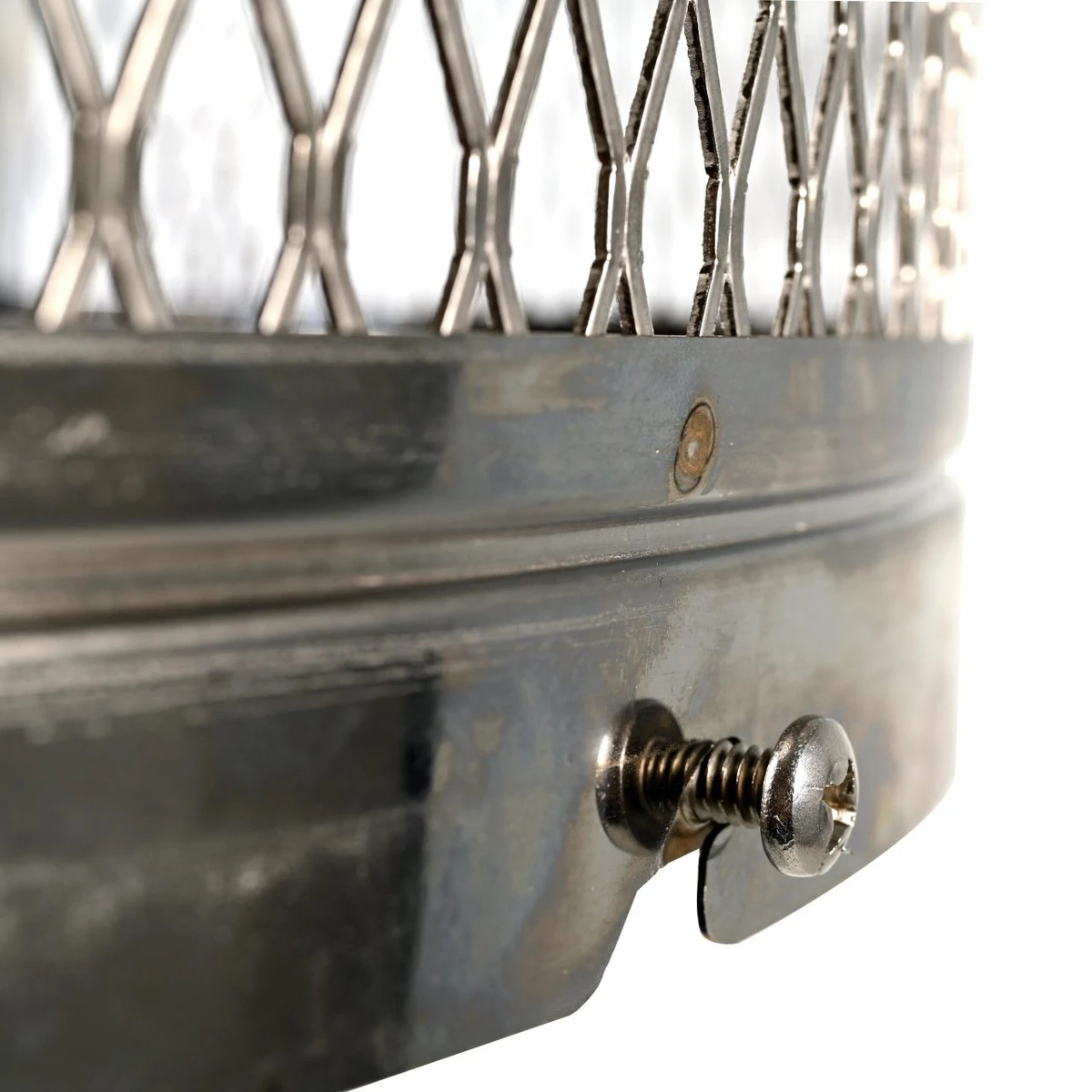

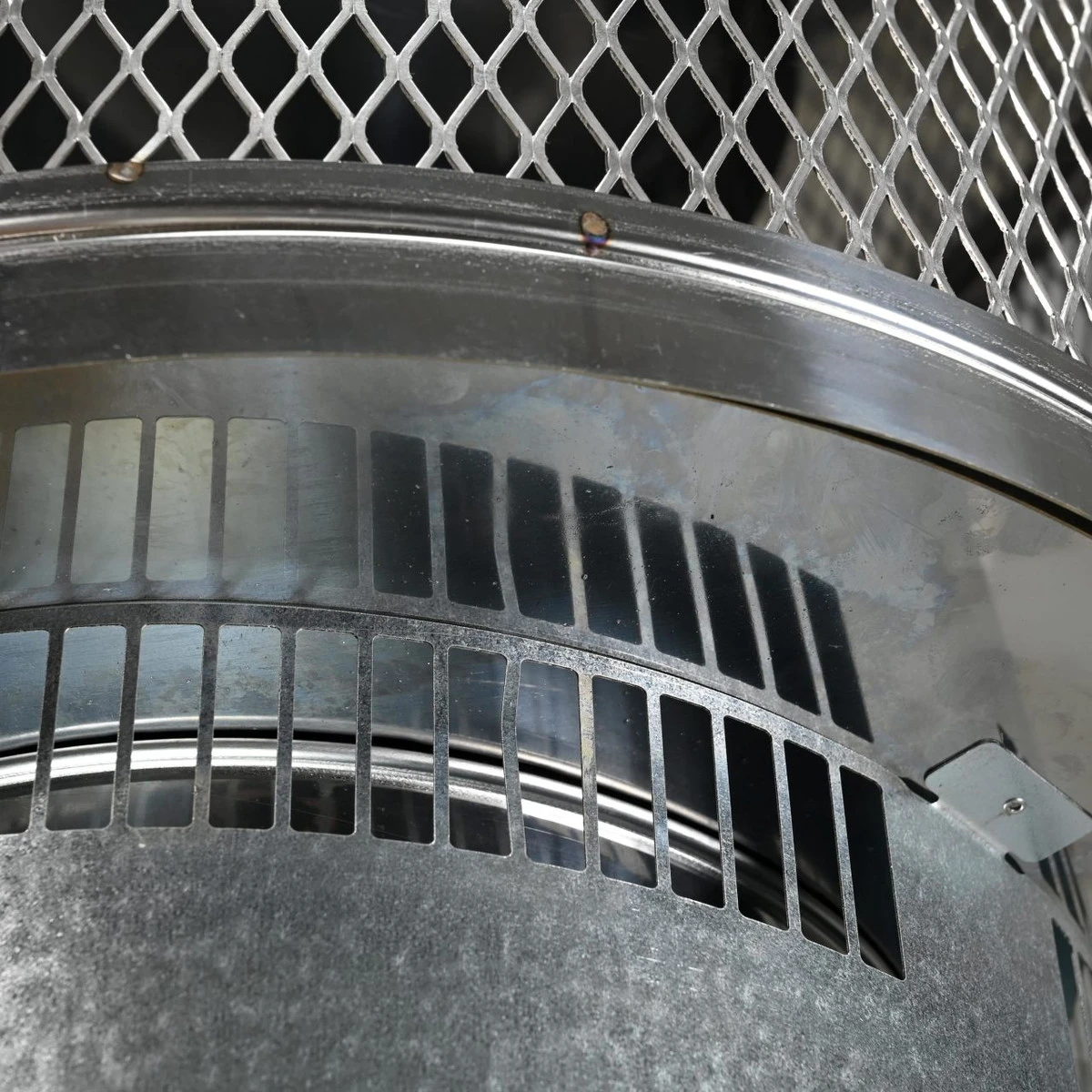

Use to terminate the chimney system. Required on all installations. Slides over previous section of DuraChimney pipe to allow for chimney height adjustment. Shown with optional spark arrestor.

See all 12″ DuraChimney II Components.

Additional Information:

The DuraChimney II system is a double-wall air-cooled chimney system for masonry fireplaces which burn wood, oil, coal, or gas. DuraChimney II is an exceptional alternative to pre-fabricated masonry chimneys. DuraChimney II is a unitized, lightweight design which eliminates the need for field assembly of pipe sections, allowing for faster installation.

DuraChimney II is designed to stay cool on the outside, to provide a hot draft on the inside, and to provide a fire-safe design that protects both the chimney and the building. The double-wall design allows the chimney to expand both radially and lengthwise under high temperatures.

  DuraChimney II Installation Instructions

WARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harmFor more information go to http://www.P65Warnings.ca.gov.
Specifications:

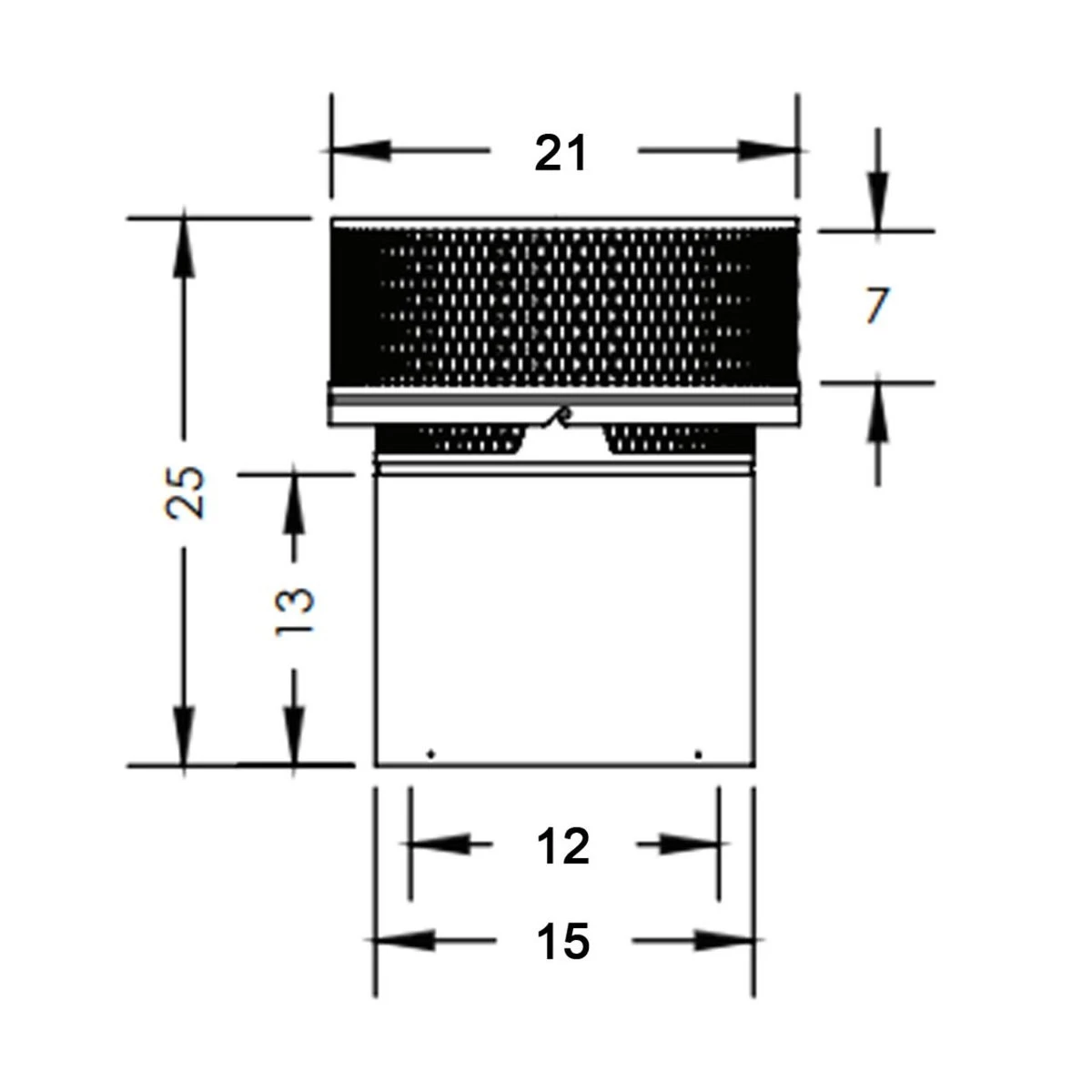

• 12″ Diameter
• Slides over previous section of DuraChimney pipe to allow for chimney height adjustment
• .016″ 430 stainless steel inner wall and .021″ galvanized steel outer wall
• Required on all installations
• UL Listed to UL 103 and ULC S604 standards (MH7399) (Stainless steel outer wall required for installation in Canada.)
