17″ X 17″ Lyemance Chimney Damper

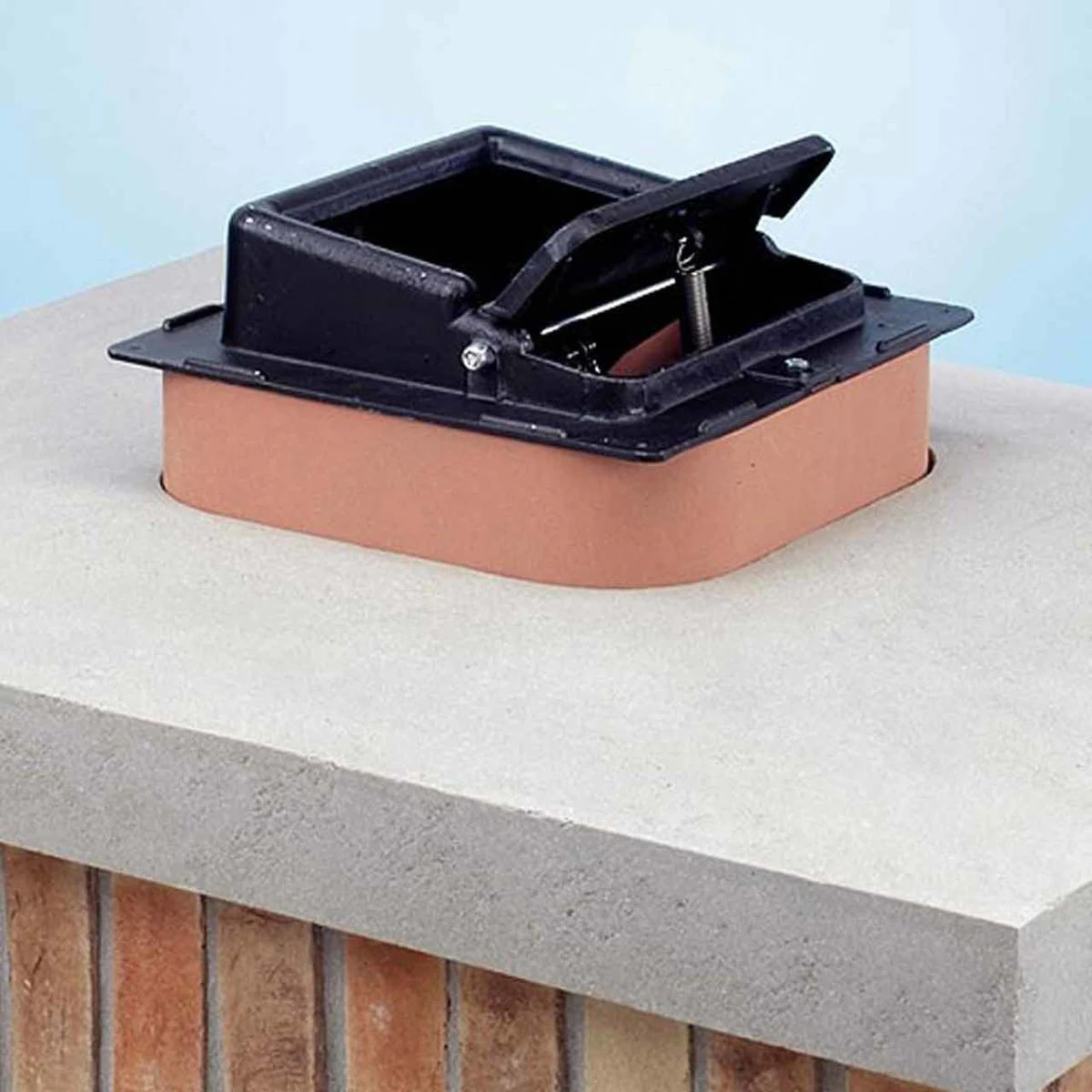

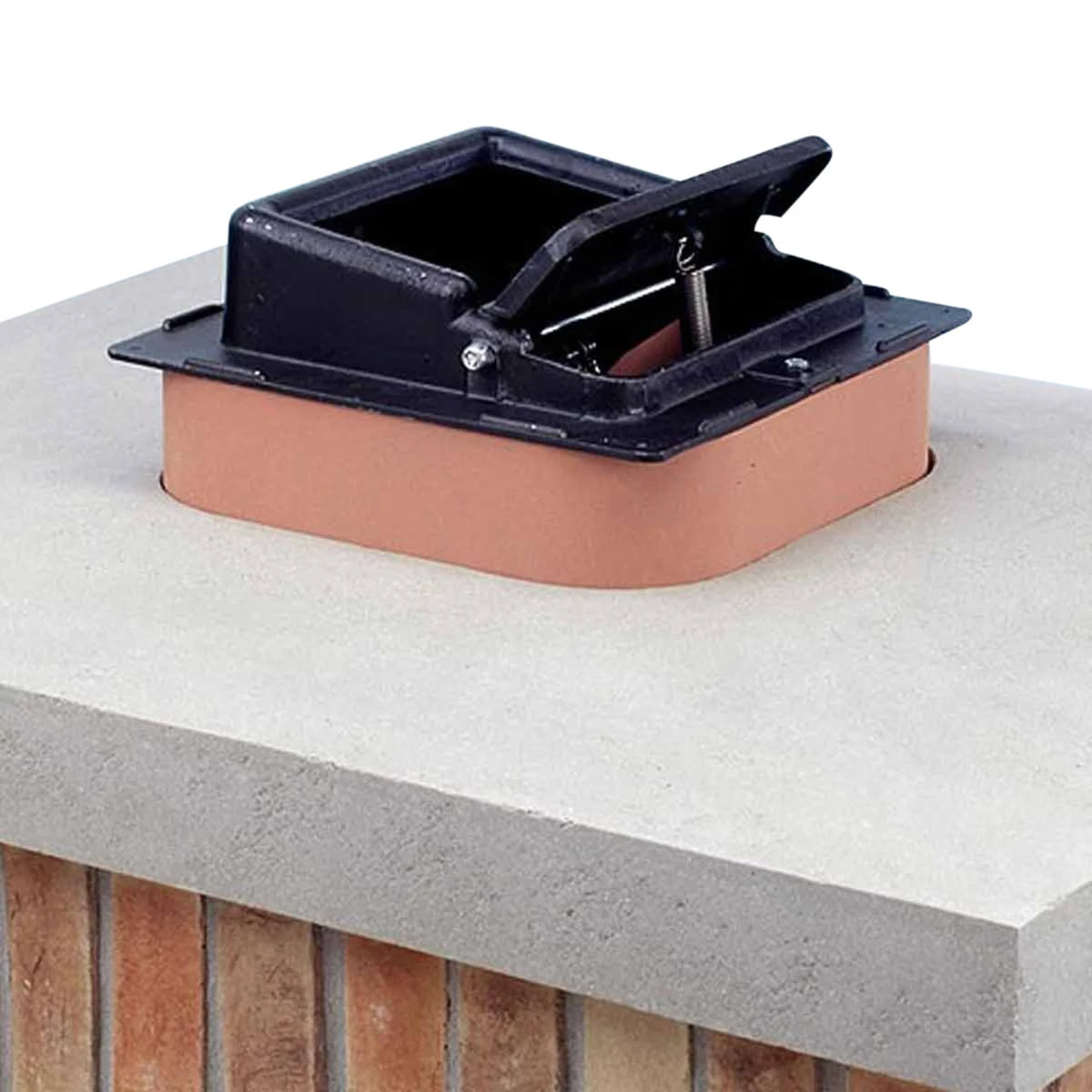

The Lyemance Damper can be installed in minutes and comes with a tube of silicone adhesive for mounting to the top of the tile liner.

The lid of the damper is spring-loaded and normally in the open position. It is shut by means of a stainless steel cable which extends down the inside of the chimney flue and is attached to a hook mounted in the fireplace opening. Each die cast aluminum damper is completely assembled and includes a 32′ cable. Longer cables are available.

40′ Cable 50′ Cable.

*Top sealing dampers are not recommended with gas logs- failure to open could cause carbon monoxide to back up into the house.

  Installation Instructions

Specifications:

• Measures 17″ x 17″
• 6 1/2″ Open lid height
• Cast aluminum construction
• Silicone rubber seals tight
• Easily mounts atop a flue tile
• 172 sq. in. cross-sectional area
• Easy opening with power lever assist
• Includes instructions, hardware and silicone sealant
• Fits inside flue sizes 15″ x 15″ to 17 1/2″ x 17 1/2″
