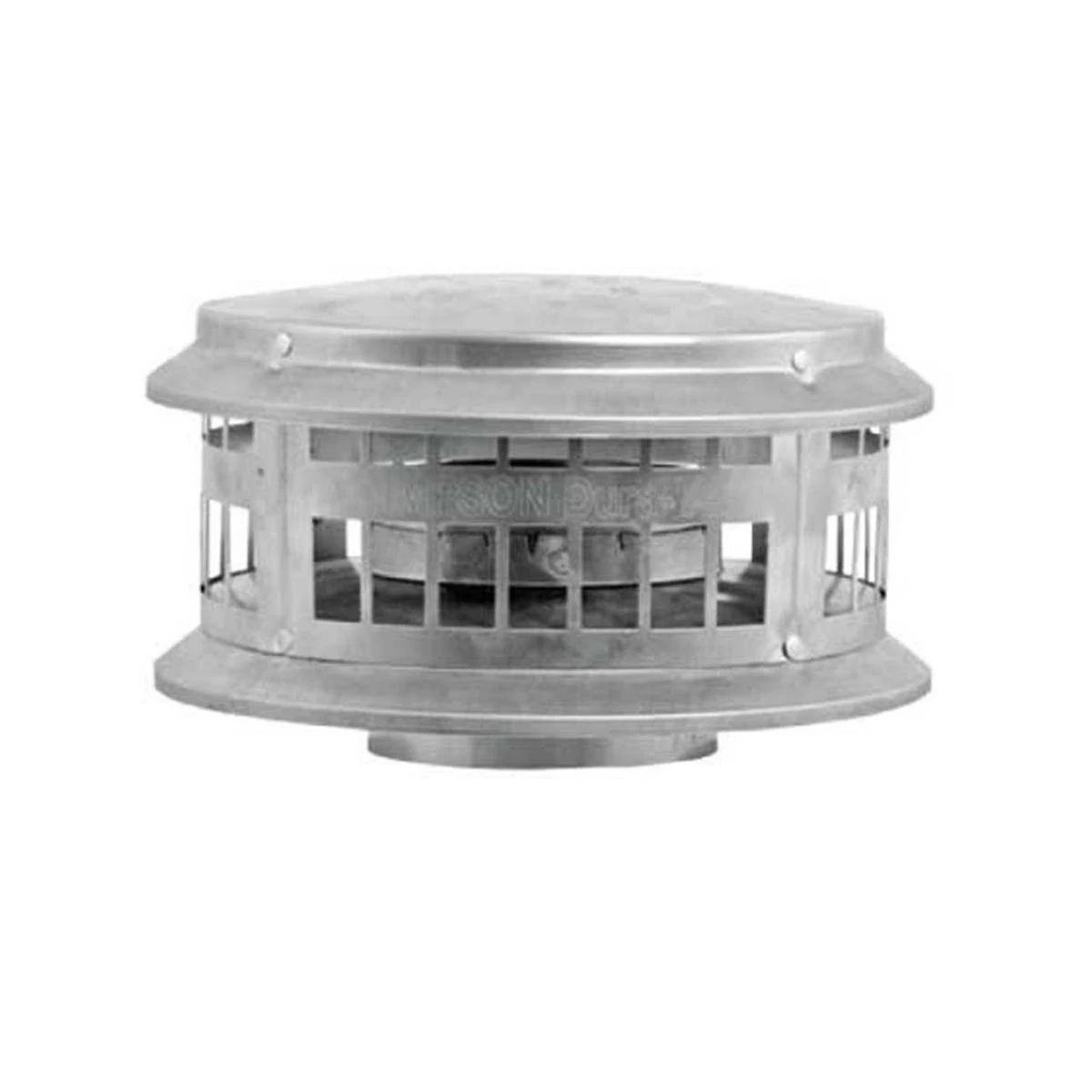

3″ DuraFlexAL Cap – 3DFA-VC

The DuraFlex Cap is used to terminate a relining system at the top of the masonry chimney. Supports flex with a fast connect band. Designed to fasten to flex length with fast connect band. No screws required.

See all 3″ DuraFlex AL Chimney Liner Components.

Additional Information:

DuraFlex AL is an economical venting system used for relining masonry chimney for natural gas or liquid propane category I, draft hood equipped appliances, and appliances tested and listed to use Type B Gas Vent for a wide range of applications, including: natural gas fireplaces, gas fired furnaces, boilers, water heaters, and wall or space heating applications. DuraFlex AL also protects the masonry chimney from the damaging effects of flue product condensation.

DuraFlex AL, an aluminum relining system, provides and economical means to reline masonry chimney for Category 1 gas furnaces, water heaters, fireplace inserts, and non-condensing boilers and comes with a Lifetime Limited Warranty. DuraFlex AL flexible aluminum liner and components are UL Listed.

  Installation Instructions

WARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harmFor more information go to http://www.P65Warnings.ca.gov.
Specifications:

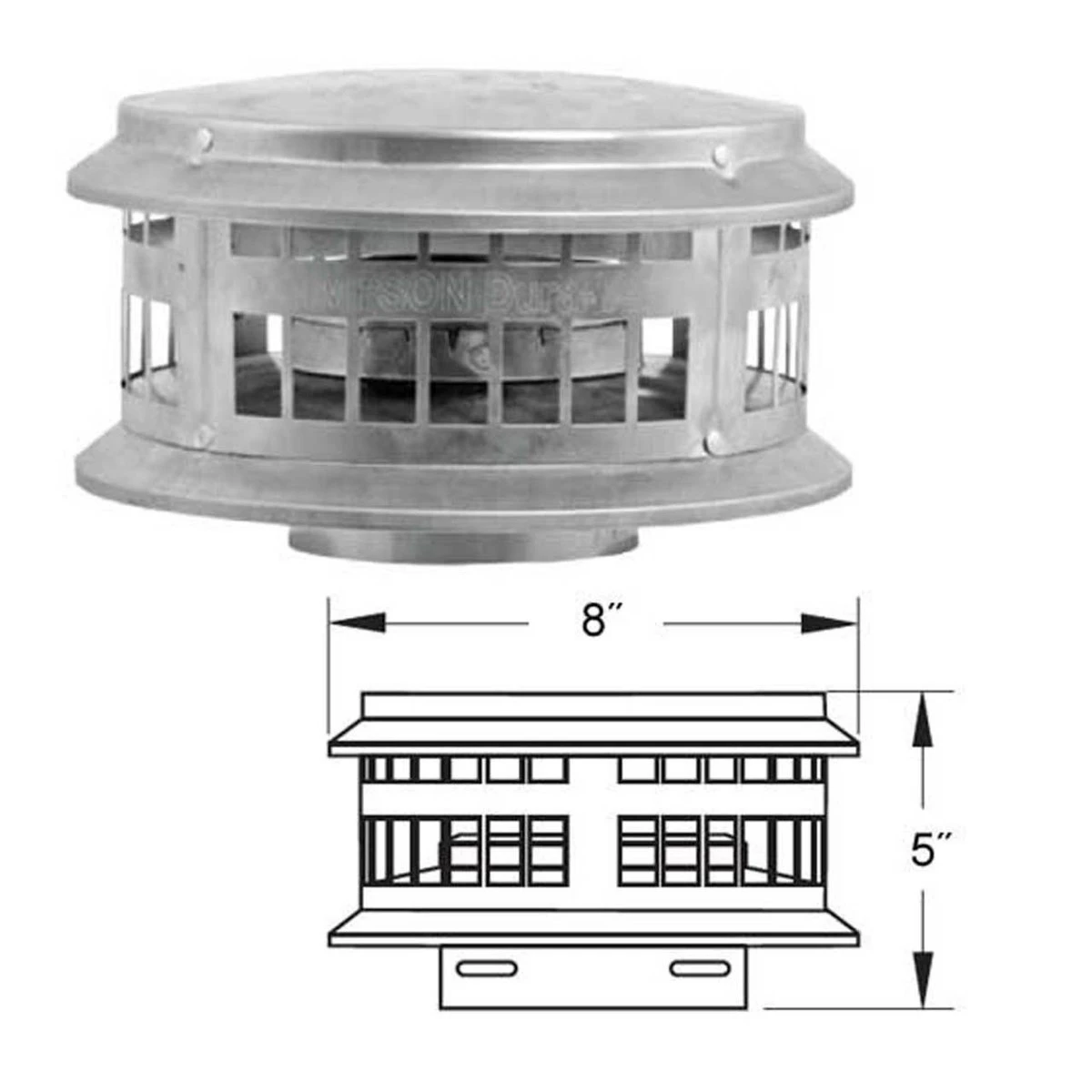

• Dimensions: 8” cap diameter x 5” high
• Fits 3” diameter DuraFlex AL pipe
• Construction material: Single wall .010″ aluminum (2-ply of .005″)
• Clearances: 0″ to Masonry
• Listings: Listed to UL 1777 and ULC S635
