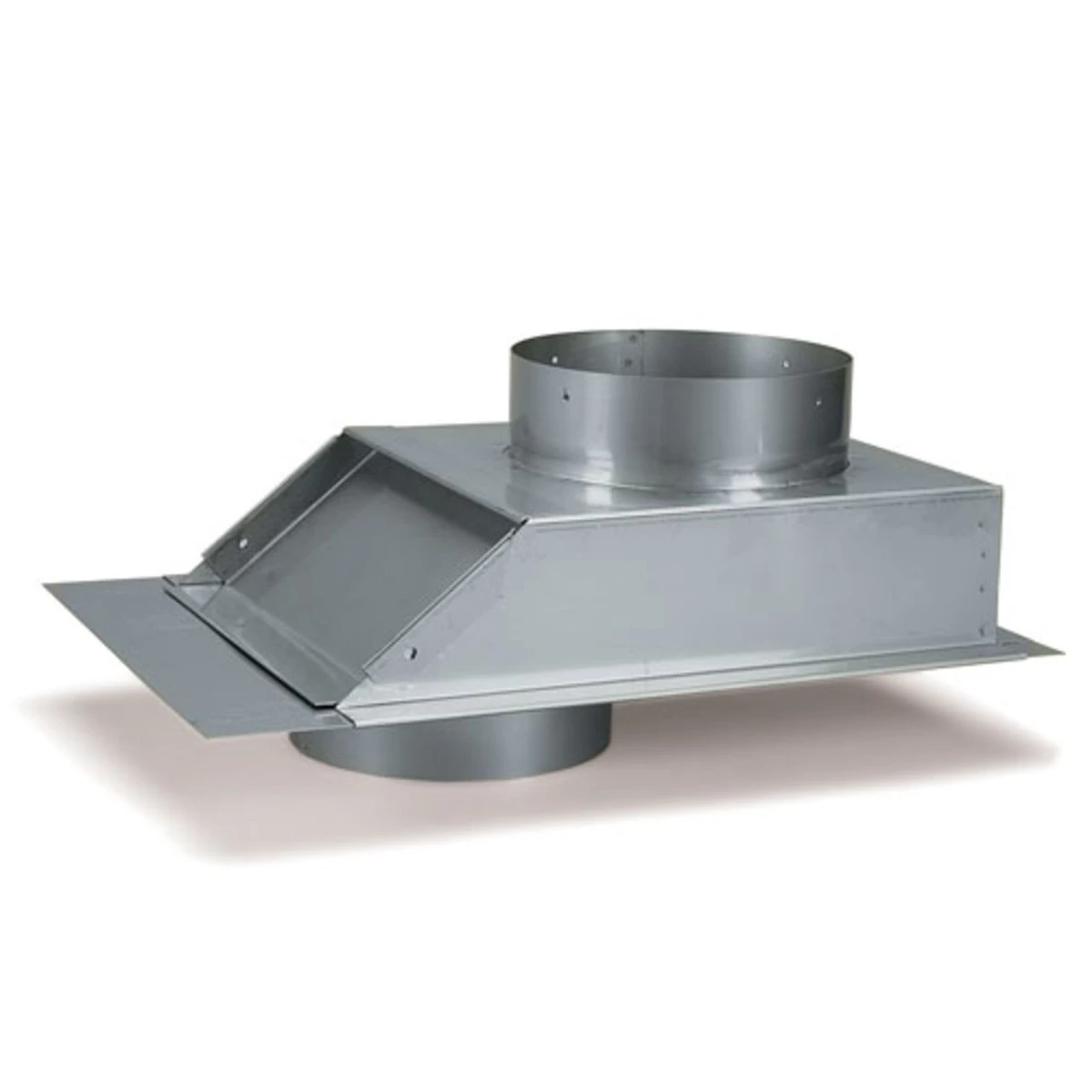

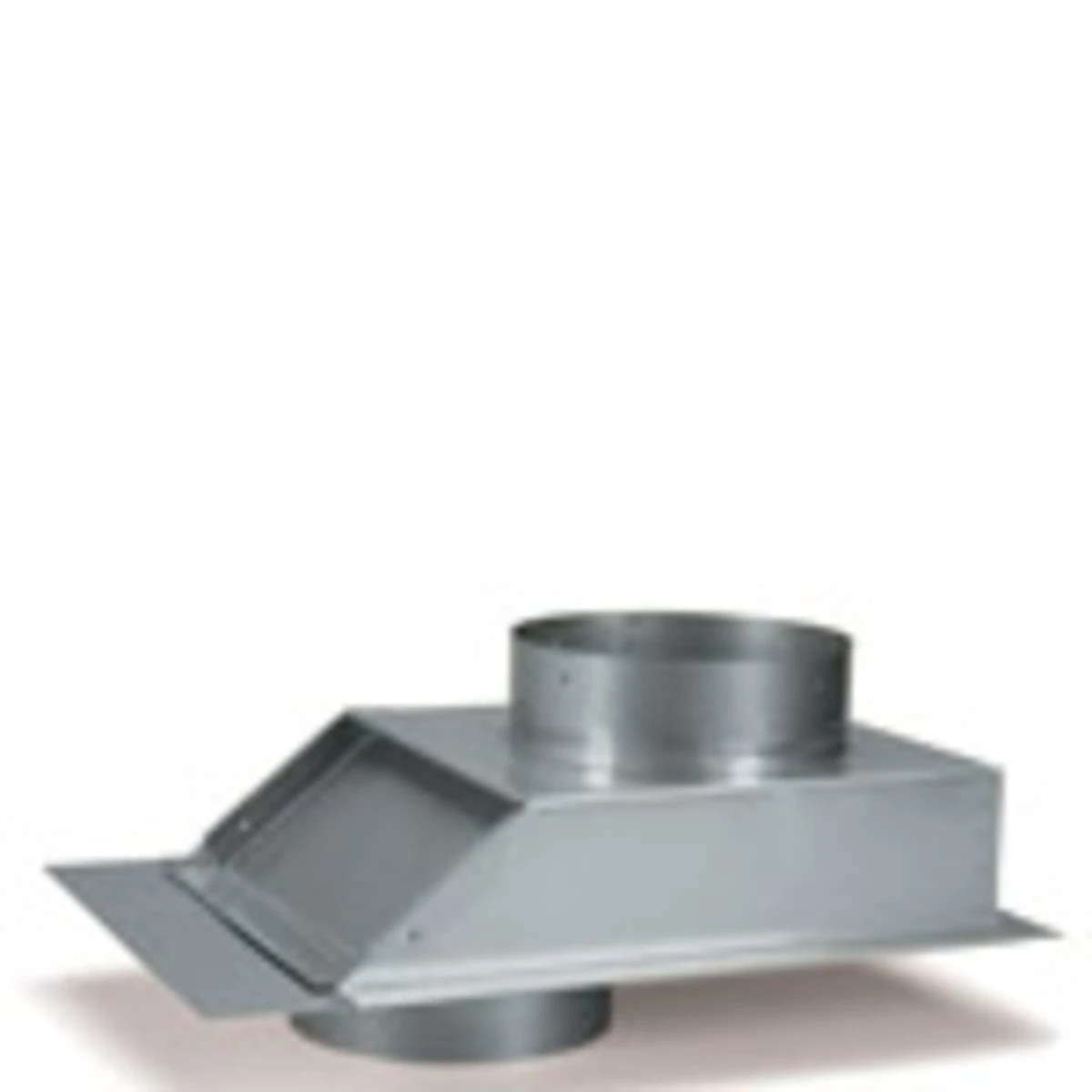

6″ HomeSaver UltraPro Offset Insert Adapter

The Offset Boot Adapter allows a liner to be offset to the rear of an insert outlet. Offset amount is adjustable from 0″ to 5″. The adapter’s top outlet receives a 6″ inside diameter liner, 6 1/2″ max outside diameter. The bottom flange fits into the outlet insert. The Offset Adapter is ideal for wide lintels as well as shallow inserts.

Note: Requires an Insert Boot Adapter

Specifications:

• Diameter: 6″
• Construction material: Stainless steel
• Listings: UL Listed to 1777 standard for zero clearance and ULC Listed to S635-00
• Clearances: 0″ clearance to masonry for gas, 1″ clearance for pellet and oil stoves, for wood-burning applications, insulation is required for 0″ clearance to masonry
• Provides a drip-free connection
• Dimensions: From the bottom of one collar to the top of the other the unit measures 4 3/4″ high. The unit will provide an offset of 0-5″. The base of the unit measures 12″ Long x 11 1/2″ Wide.
