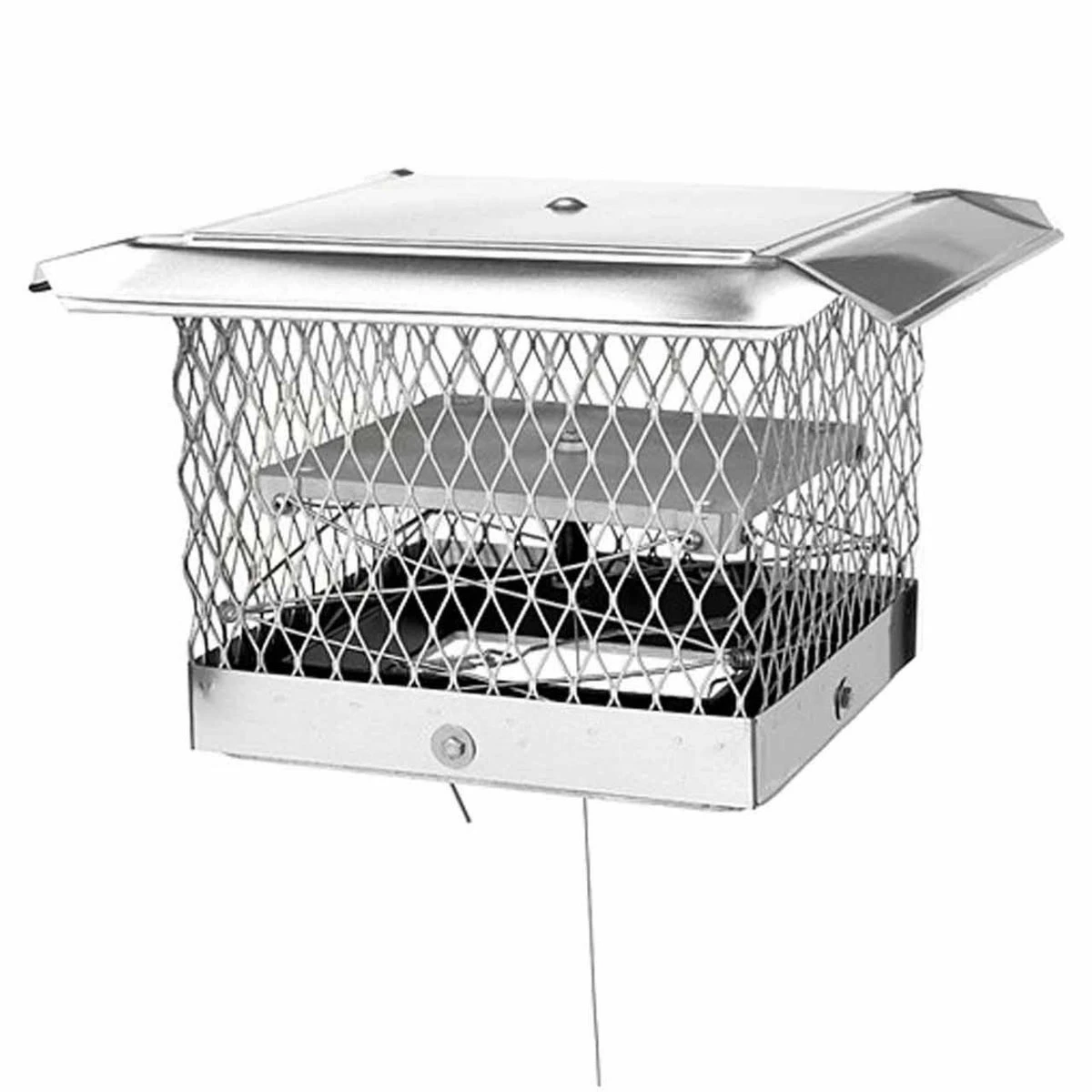

8″ X 17″ Lock-Top II Chimney Cap-Damper

The Lock-Top II Chimney Cap/Damper arrives fully assembled and ready to install. Its base mounts to the sweep’s ring which attaches to the flue tile with silicone sealant. A 30′ stainless steel cable drops down the flue, and a hardware set mounts in the firebox. The end result is a damper that opens and closes with ease at the tug of a drop down cable. The Lock-Top II is equipped with a fire safety device that enables the damper to remain open in case of a chimney fire.

*Top-sealing dampers are not recommended with gas logs- failure to open could cause carbon monoxide to back up into the house.

• Measures 8″ x 17″
• 5/8″ mesh screen
• 11 3/8″ Overall height
• 105 sq. in. cross-sectional area
• Fits inside flue sizes 6″ x 14″ to 9 1/2″ x 17 1/2″
• 30′ Stainless steel cable included
• Silicone sealant included
• Sweep’s ring included

Specifications:

• Measures 8″ x 17″
• 5/8″ Mesh screen
• 11 3/4″ Overall height
• Fits inside flue sizes 6″ x 14″ to 9 1/2″ x 17 1/2″
• Stainless steel and cast aluminum construction
• Silicone sealant, sweep’s ring, 30′ stainless steel cable included
