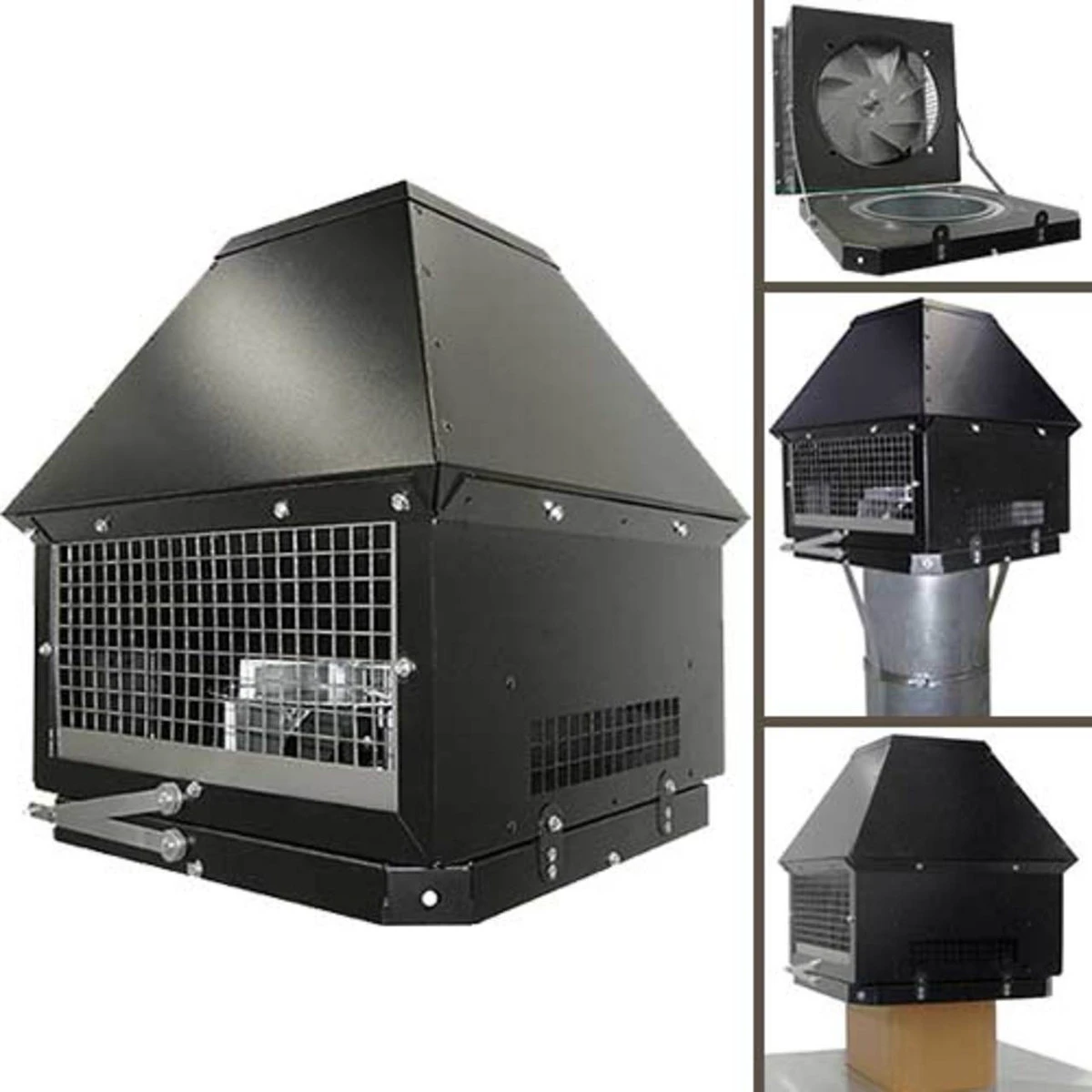

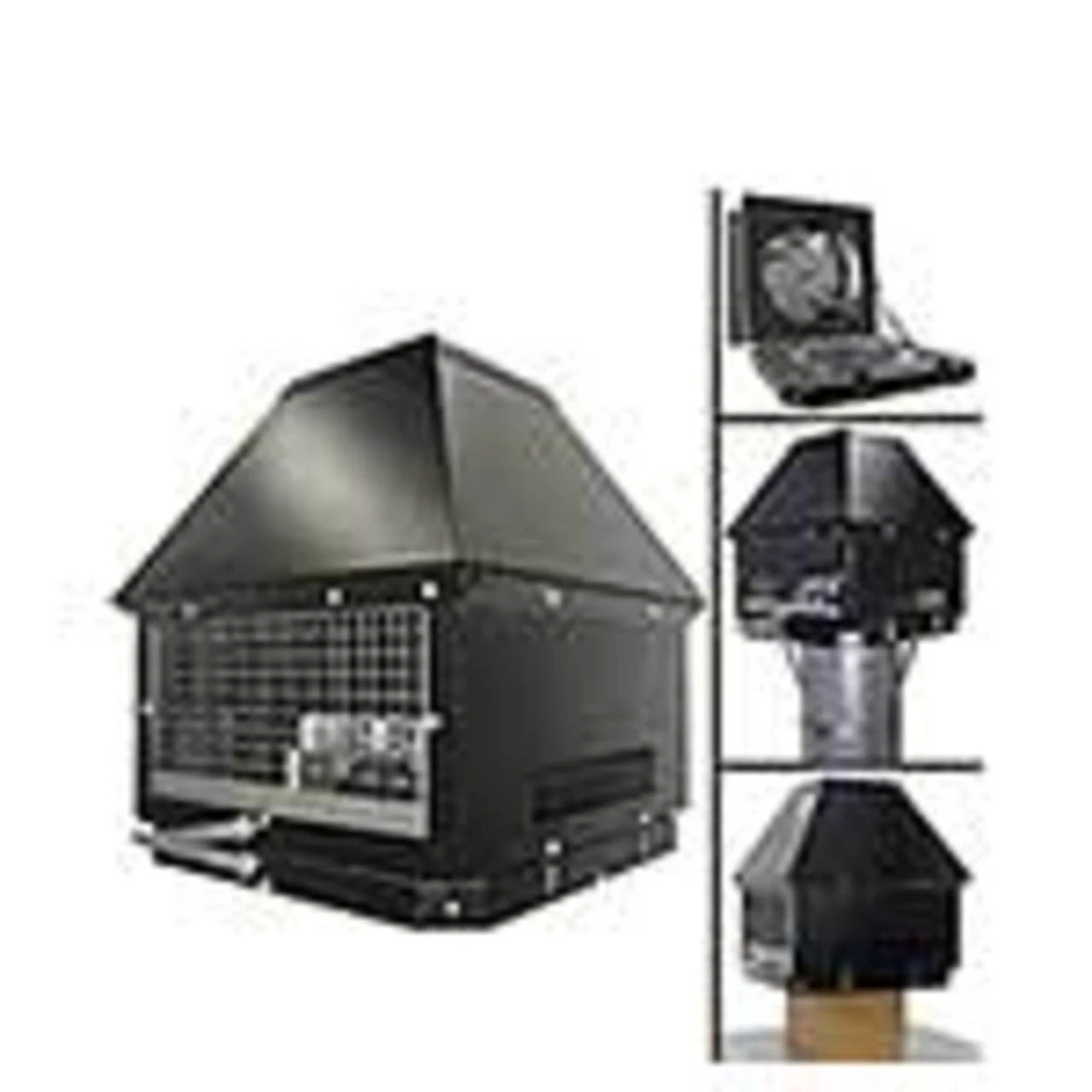

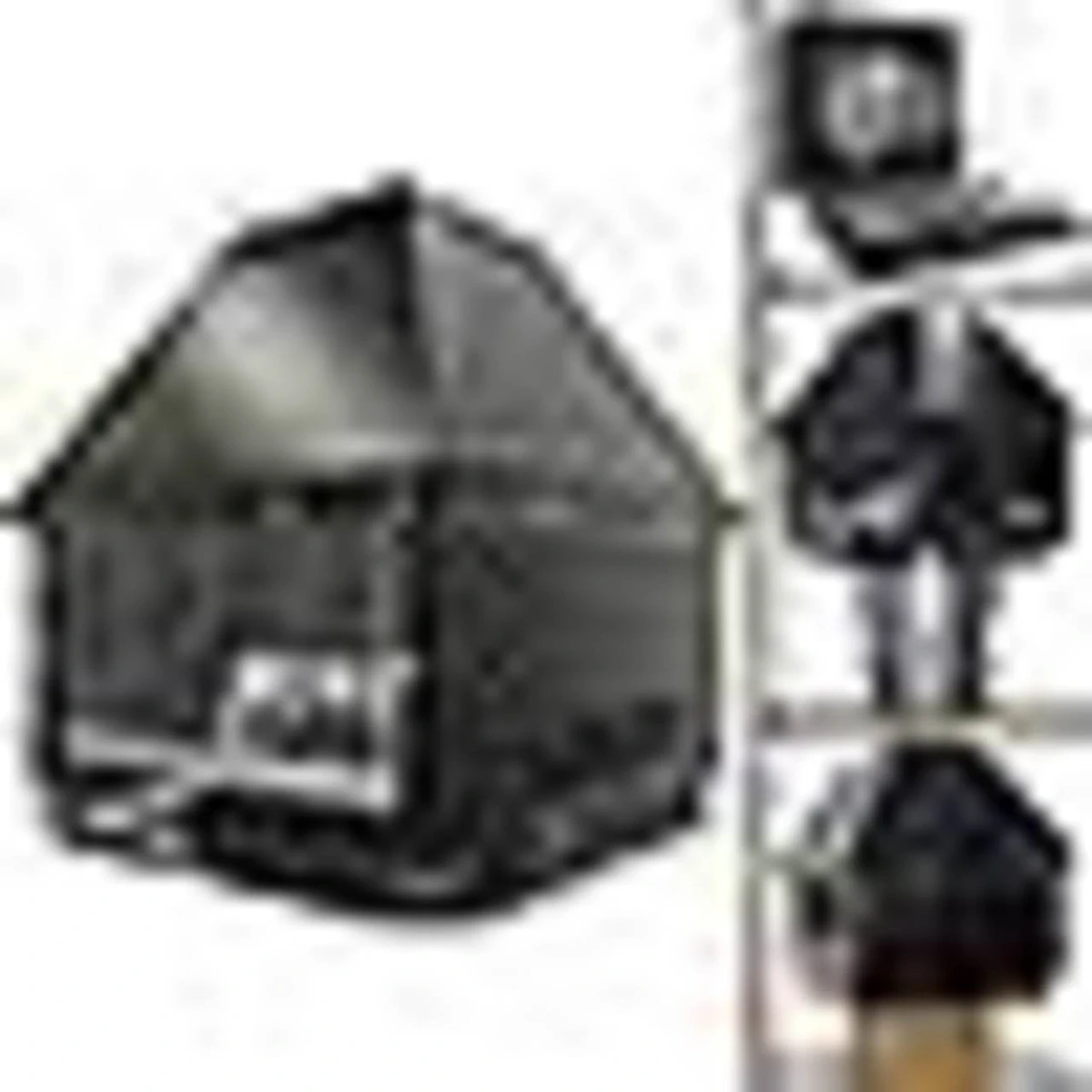

Tjernlund Auto-Draft Rooftop Chimney Fan

With the Auto-Draft Chimney Fan your hard starting or back-drafting fireplace, stove, BBQ, or heater draws immediately and perfectly every time. Great for chimneys that are too short or that face heavy winds. Enjoy fires without the smoky back up – even with moist or hard to ignite type fuels. Once the fire is burning, adjust the variable speed control knob to achieve maximum efficiency. Great for noise sensitive installations. Connects easily with metal or tile lined flues. Lower power consumption even at full speed. Made in the U.S.A

Auto-Draft Fan Features:

• Speed control compatible
• Includes wall mount adjustable speed control
• PSC ball bearing motors with -40 Degrees F low temperature lubricant
• Patented motor cooling system automatically activates, extending motor life
• Clamshell design for easy installation, inspection and service
• High performance backward inclined impeller repels soot
• High temperature powder coat finish
• For solid fuel fireplaces, stoves, ovens, bbqs, boilers & general purpose exhaust

  Tjernlund Auto-Draft Rooftop Chimney Fan Brochure

  Installation Instructions

Specifications:

• Size: 16″ Wide x 16″ Deep x 18″ High
• Inlet Diameter: 8″
• CFM: 250-750
• Motor HP: 1/8
• Motor Amps: 1.5
• Motor Volts 120
