Tjernlund Automatic Draft Inducer

Note: If there are any offsets near the installation sight, reversal of airflow may cause smoking.

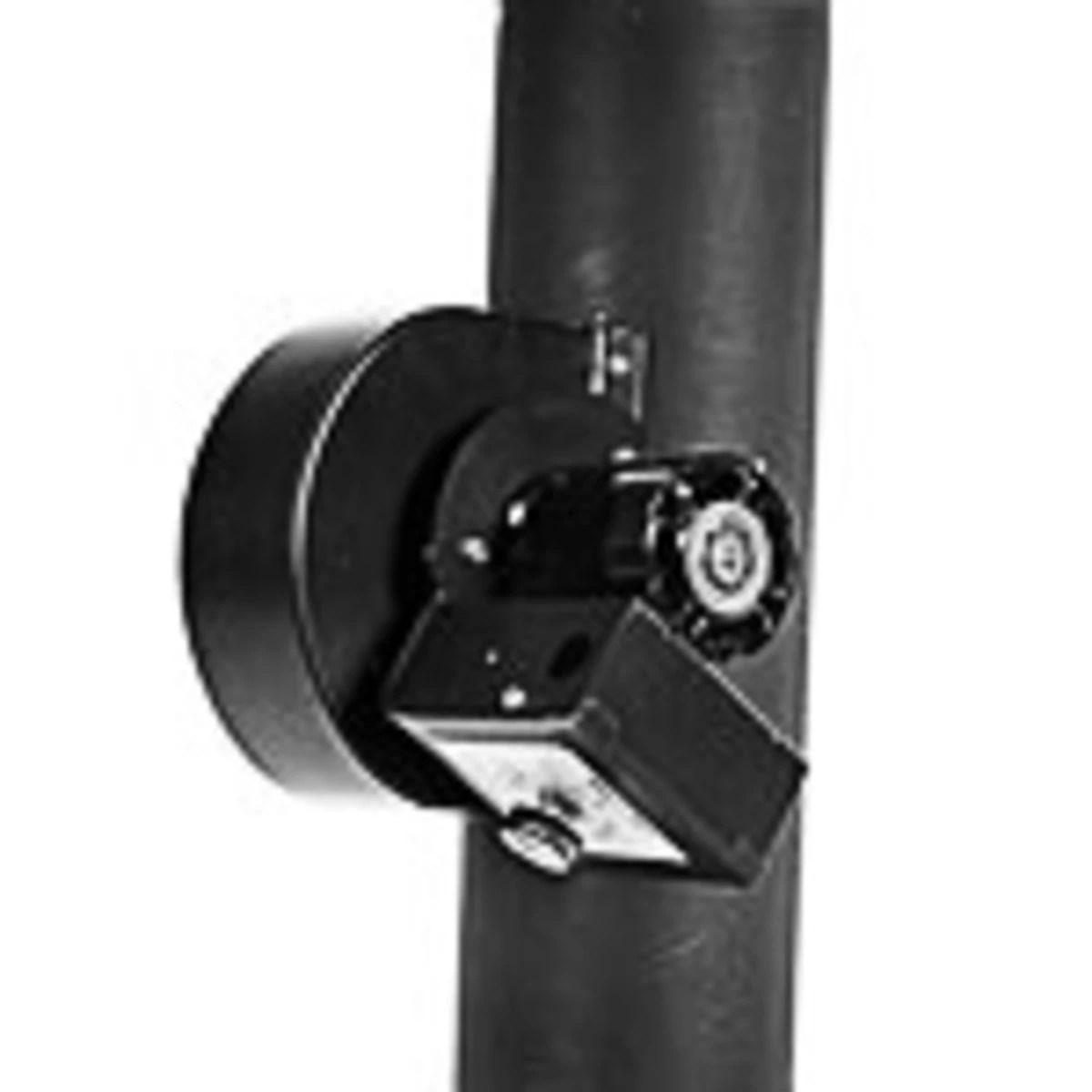

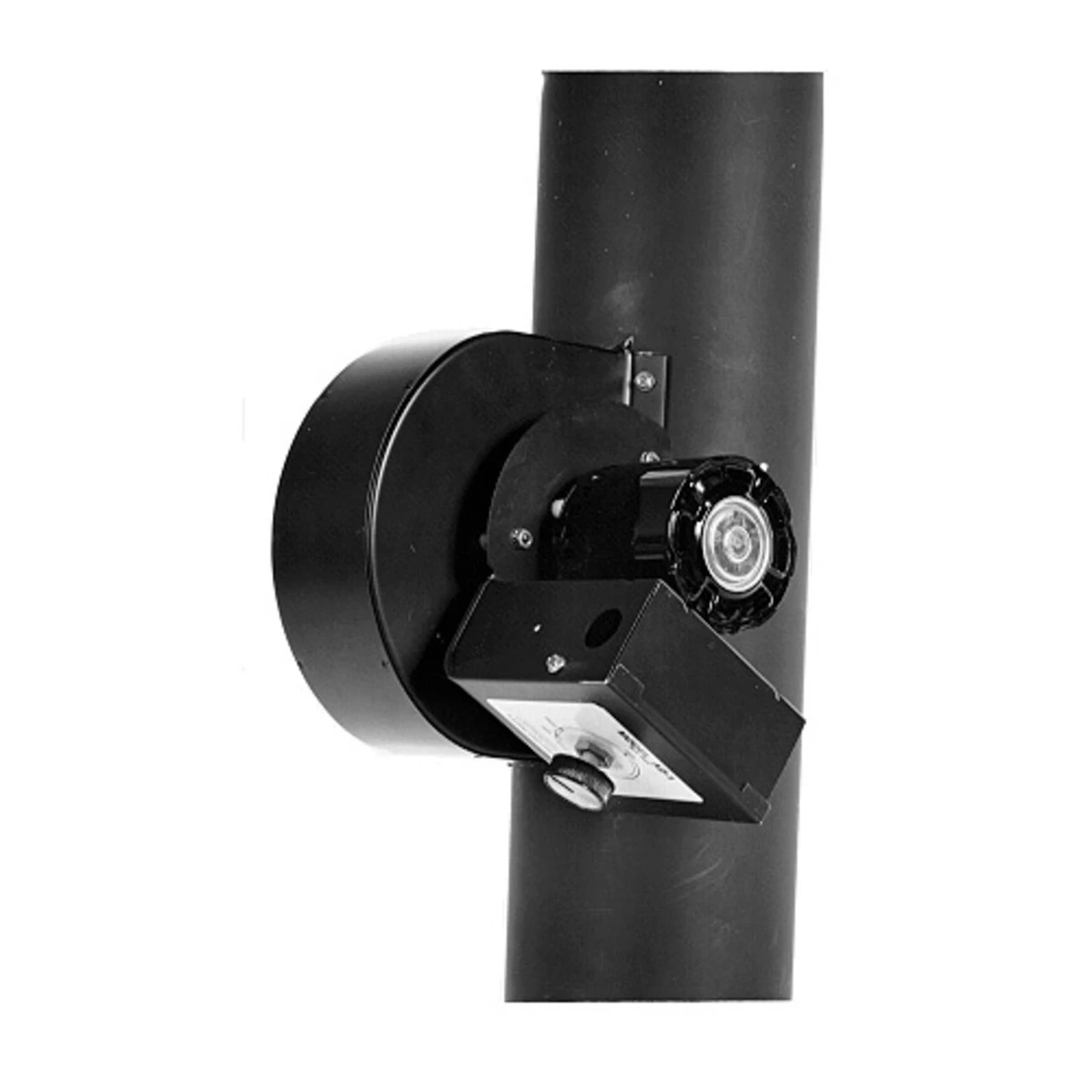

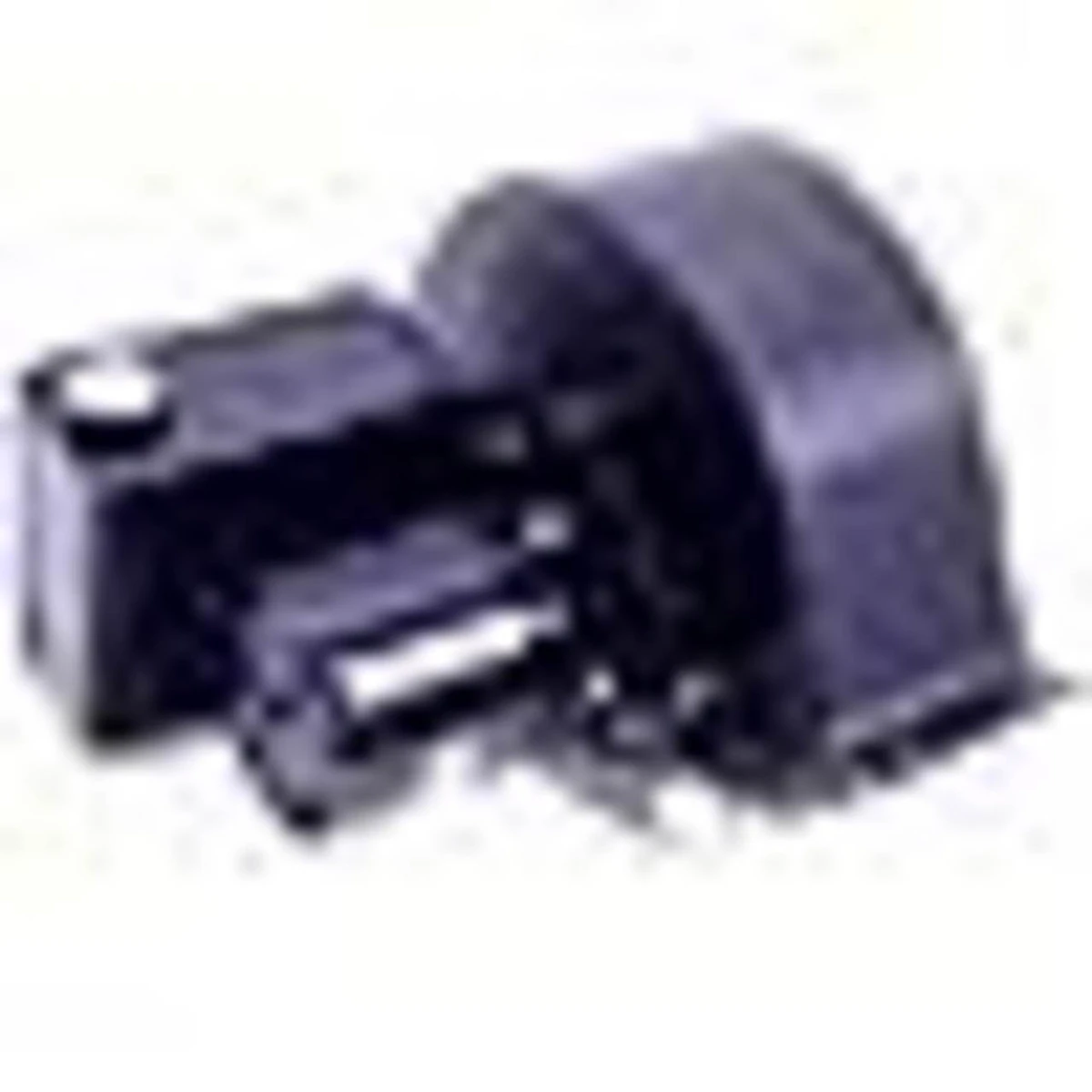

Tjernlund Auto-Draft Draft Inducer – Draft Inducers are electrically operated to increase the air flow up the chimney. This action increases the negative pressure (draft) in the stove, preventing smoke from leaking out of pipe, seams or doors. The Tjernlund Draft Inducer is specifically designed for freestanding wood and coal stoves with severe draft problems and is designed to be installed in single wall black pipe. Installation involves cutting a slot into the black pipe then mounting the fan on the pipe. Not for use with fireplaces or with double or triple wall pipe. The manual operation runs with an adjustable speed control, turn a certain amount to turn it on and then you can control the speed with it from there, much like a dial light switch.

Product Note: Must be installed at least 18″ away from the stove.

Additional Information:

  Installation Instructions

  brochure.

Specifications:

• For use with Single Wall Pipe
• Eliminates smoke when loading.
• Overcomes flow reversal in non-self-starting chimneys.
• Fits 5, 6, 7 and 8″ diameter stovepipe.
• Operates on standard 110 VAC.
• Draws .8 amps (maximum).
• Dimensions; 11 5/8″ x 8 1/2″ x 7 1/2″.
• Can be used with coal burning appliances.
