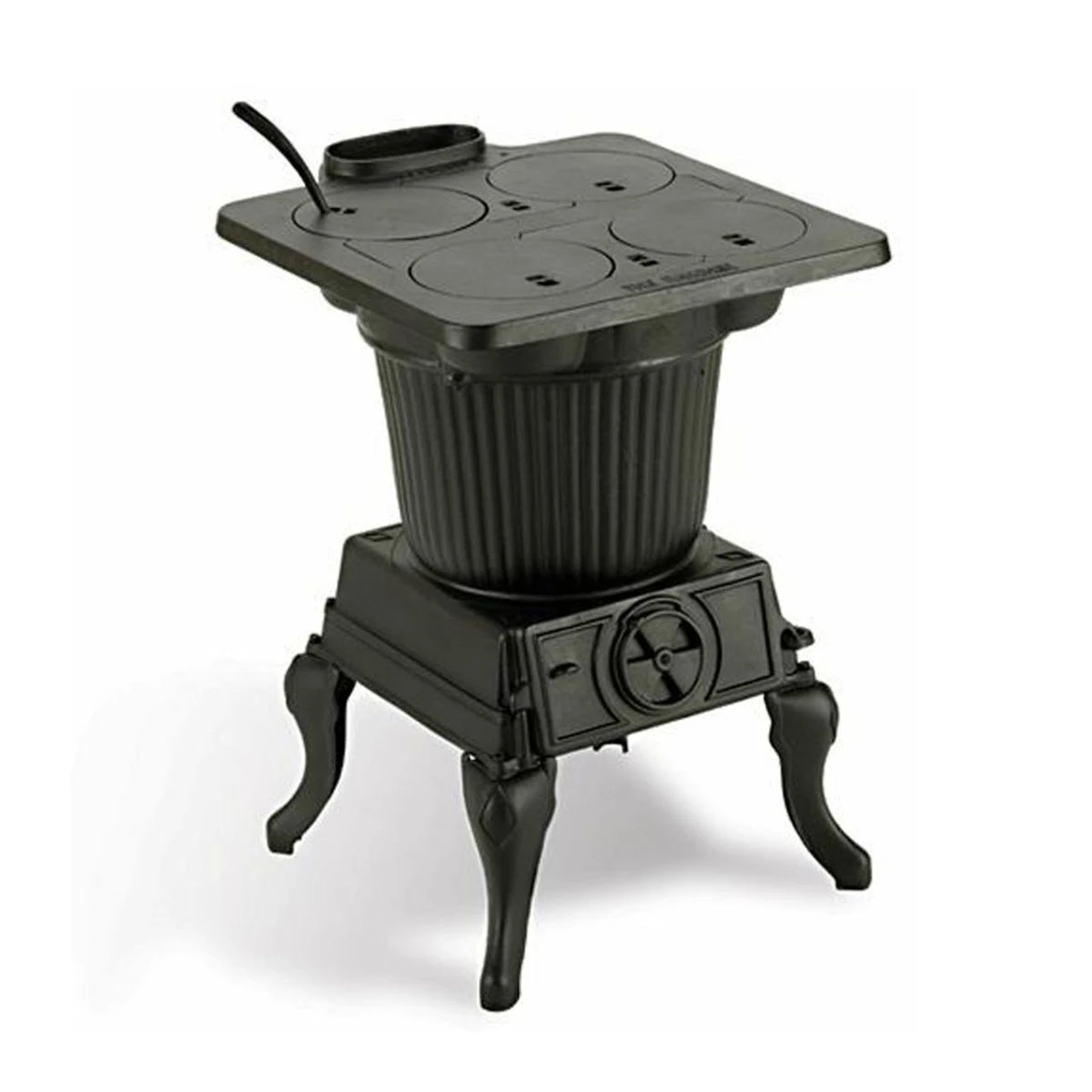

Vogelzang Rancher Coal Burning Stove – SR57E

The Rancher is an all cast iron cooking range that will burn only coal. It features a large “flare-top” with four 8″ lift-out cook lids that allow convenient top loading. The Rancher’s ability to accommodate several pots and pans at once makes it the perfect addition to cabins, hunting camps, and lodges.

Although the Rancher is built for heavy-duty use, it is very flexible and serves many other functional purposes other than cooking and heating. A simple pot of water or steamer set on the top of the stove will humidify your home and just a splash of stove scents added to that water will fill your cabin with delightful aroma. Some assembly required.

• 60,000 BTU rating
• 6″ Oval flue size
• Heats up to 1,000 sq. ft.
• Burns coal only
• Lower “spin-draft” controls air intake
• (4) 8″ Lift out cook lid for top loading
• Convenient ash door and tray for easy clean out
• Cast iron “shaker” grate and large ash pan for ash removal

Attention: This item is not for sale in the state of California, Utah, and Washington. Customers are responsible for checking local codes and regulations prior to purchase.This stove is not approved for installation in mobile or manufactured homes.

Additional Information:

BTU Heat Output (High Burn)	Firebox Capacity	Area Heated (sq. ft.)	Log Size (max)	Flue Diameter	Burn Time
60,000	Holds 20 lbs of Coal	1,000	14″	6″ Oval (Top)	4-6 Hours

Dimensions	Firebox Chamber Dimensions	Mobile Home Approved	Weight	Catalytic Combustor
28″ High x 24″ Wide x 20″ Deep	10″ Deep x 12″ High	No	154 lbs	No

Clearances to Combustibles

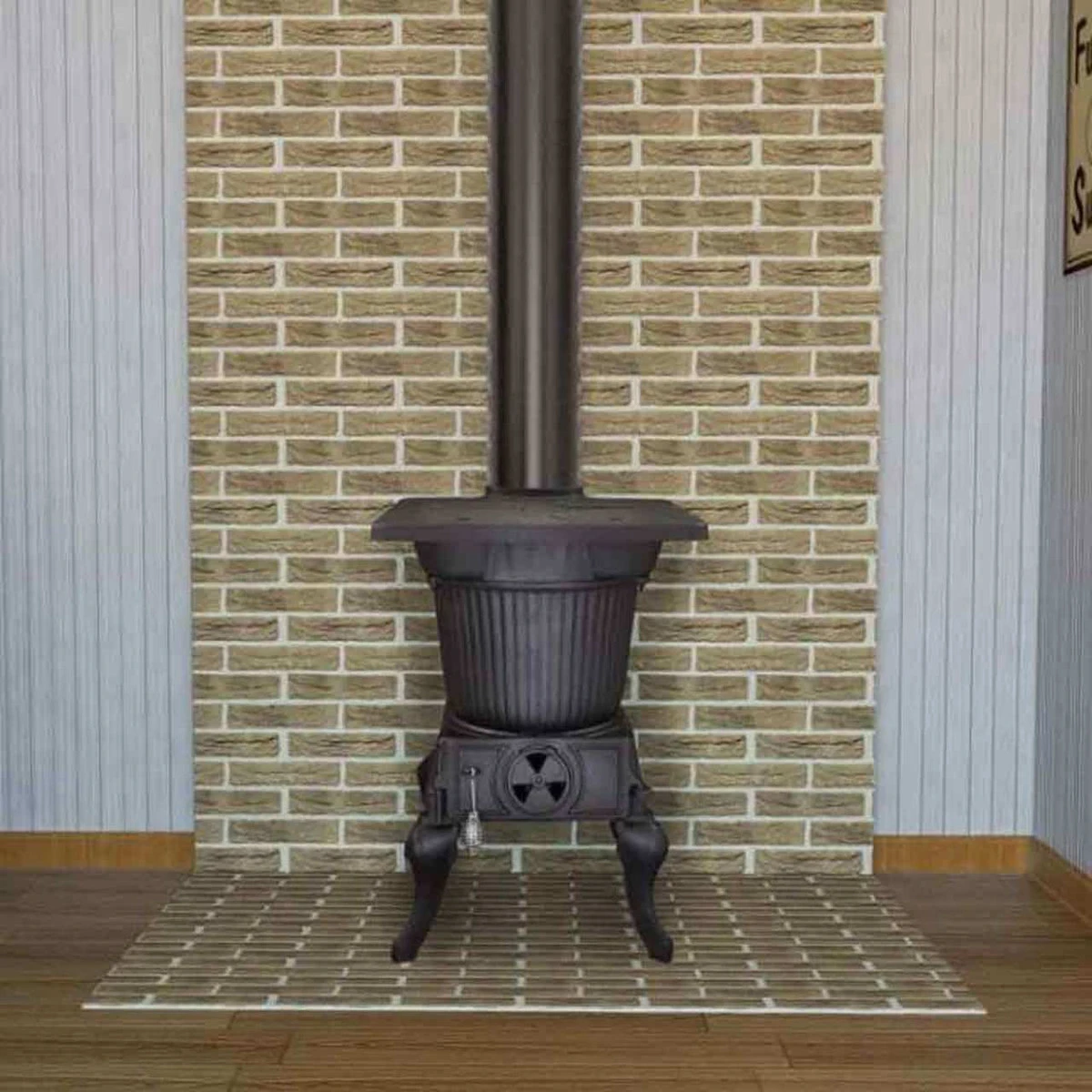

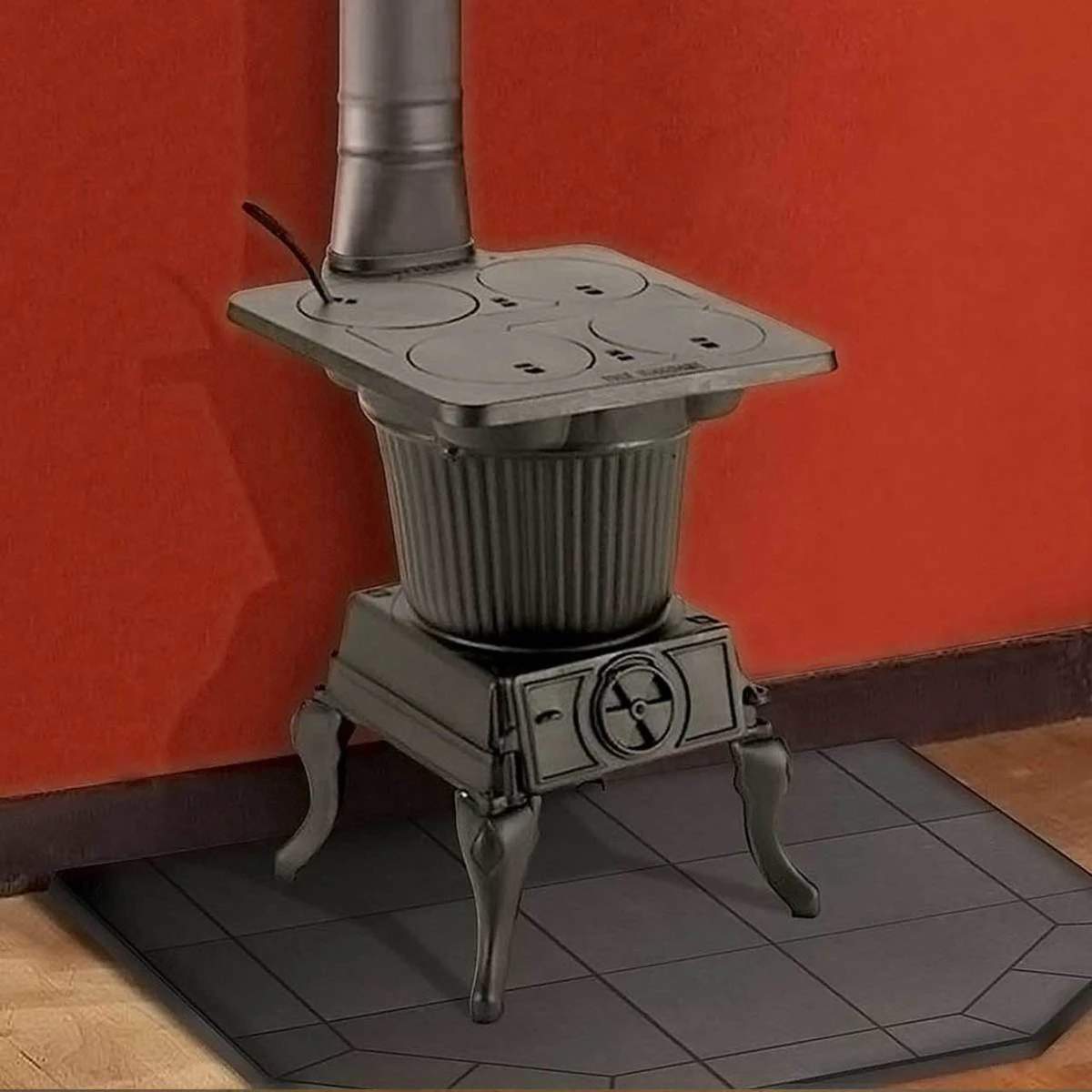

Installation
Unit to Side wall	36″
Unit to back wall	36″
Unit Corner to Wall	36″
Pipe Connector to back wall	38″
Pipe Connector to Ceiling	18″

Please Note: TO VENT THIS UNIT, YOU MUST USE SINGLE-WALL BLACK STOVE PIPE UNTIL YOU REACH A CEILING OR WALL; WILL NOT ACCEPT DOUBLE WALL STOVE PIPE. You Will need to start with a 12″ piece of single-wall, black stove pipe with the crimped end up. You will then need to cut the crimped end off so that the pipe is now able to accept the next piece of stove pipe with the crimped side down.This unit burns hot enough that any creosote that collects in the pipe will burn off.

WARNING: This product can expose you to carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm.For more information go to http://www.P65Warnings.ca.gov.
Specifications:

• Painted matte black
• 60,000 BTU rating
• Heats up to 1,000 Sq. ft.
• 6″ Oval flue size
• 100% Cast iron construction
• Leg model
• Swing away top
• (4) 8″ Lift out cook lid
• Burns coal only
• Ash door and tray for easy clean out
• Lower “spin-draft” controls air intake
• Cast iron “shaker” grate and large ash pan for ash removal
• Meets EPA requirements for “exempt” coal burning appliances (stoves)

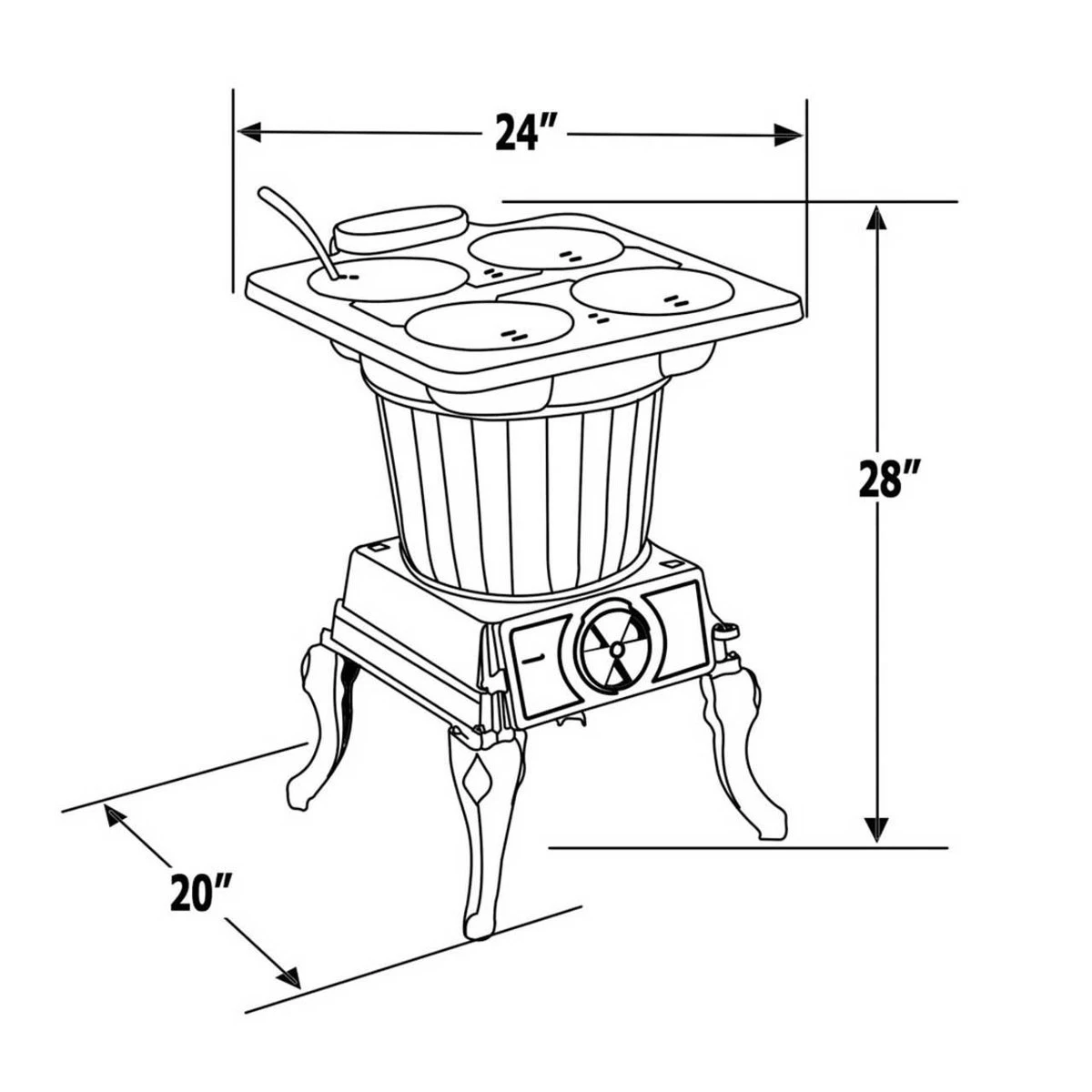

• Stove dimensions: 28″ High x 24″ Wide x 20″ Deep
• Some assembly required
• Not rated for Canadian use
